Microsoft Teams Connector

Description

The Microsoft Teams Connector allows you to integrate myCloudPBX with Microsoft Teams using Direct Routing. This enables Teams users to place and receive external phone calls via the same infrastructure used by traditional myCloudPBX users.

Use Cases

  • Let Teams users be part of internal ring groups, call queues, or any other existing call flows.
  • Seamlessly integrate Microsoft Teams into your existing PBX workflow
  • Support hybrid deployments or smooth migration from desk phones to Teams-only environments

Prerequisites

Before you begin, ensure you have the following:

  1. An active Microsoft 365 subscription, the following SKU's are acceptable:
    • Office 365 E1/E3/E5/A3/A5 or Microsoft 365 E3/E5/A3/A5
    • Microsoft 365 Business Basic/Standard/Premium
  2. Microsoft Teams license:
    • Microsoft Teams Phone Standard
  3. Administrator access to the Microsoft Teams instance you want to connect.

Connector Setup Process

PBX Portal Configuration

To Configure a new connector for Microsoft Teams, click on the 'PBX Connectors', icon from the PBX Configuration screen.

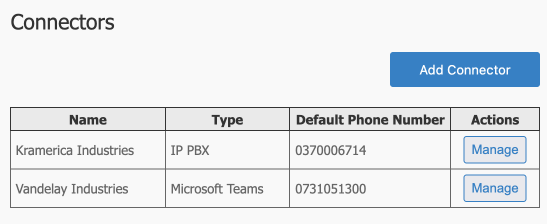

Here you can see your existing connectors.

  • To manage an existing connector, click 'Manage'.
  • To create a new connector click 'Add Connector'.

PBX Connectors Overview Page

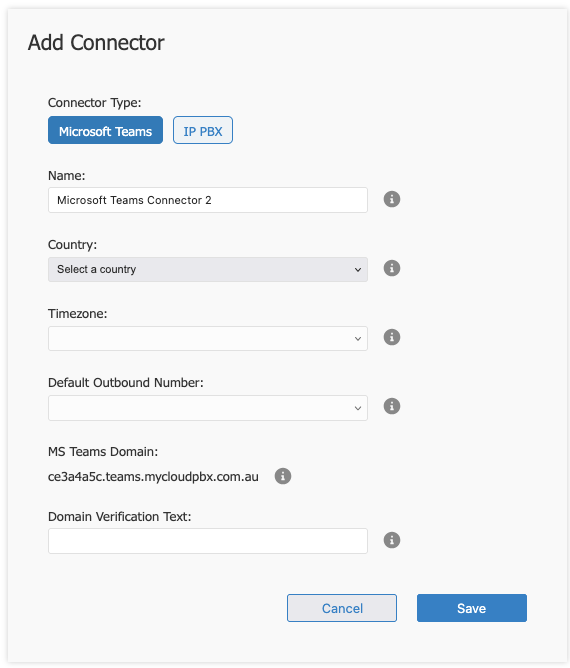

Configure as follows:

  • Connector Type: Microsoft Teams.

  • Name: This is for your reference.

  • Country: Sets the default regional settings (e.g. number formatting).

  • Timezone: Used for logs and time-sensitive operations.

  • Default Outbound Number: This will be used for the Outbound Caller ID for external calls.

  • MS Teams Domain: A unique domain allocated for use with Microsoft Teams Direct Routing e.g. example.teams.mycloudpbx.com.au.

Tip

Remember this unique domain name as you will need it later when configuring the Microsoft end.

  • Domain Verification Text: You won't have this yet, so leave it blank and click 'Save'.

PBX Connectors Overview Page

Next, we create the users within the myCloudPBX Configuration Portal on the Connector Management Screen. This should match the extension numbers you will create within Microsoft Teams.

PBX Connectors Overview Page

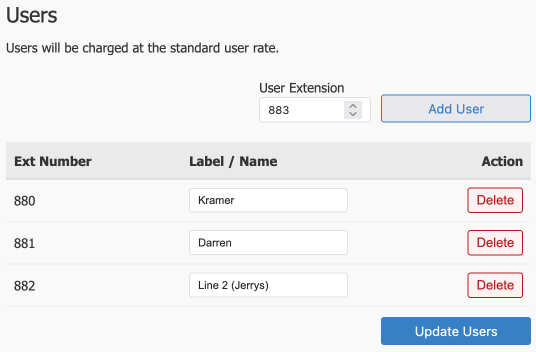

The right-hand panel allows you to define which internal users (extensions) are part of the Teams integration:

Adding a User:

  1. Enter the extension number in the User Extension field (e.g. 116)
  2. Click Add User
  3. Optionally assign a name to help identify the user
  4. Click Update Users to save changes

Teams Configuration

Domain Verification

To complete the Microsoft Teams Direct Routing setup, you must now verify the Teams domain in Microsoft 365.

Prepare Your Environment

Add Domain:

  1. Navigate to the Microsoft Admin Center.
  2. Log in with your administrator credentials.
  3. Go to Settings > Domains.
  4. Add your provided domain example.teams.mycloudpbx.com.au.
  5. Select Add a TXT record to the domain's DNS records and Continue.
  6. Note the newly generated eg: TXT value (MS=msxxxxx).

Verify Domain:

  1. In a new tab, Navigate back to the myCloudPBX Configuration Portal and Enter the TXT record generated by Microsoft in the previous step and click Save.
  2. Allow 5-10 minutes for the DNS changes to be completed by myCloudPBX.
  3. Navigate back to the Microsoft Admin Center.
  4. Continue the setup by selecting Verify.
  5. Uncheck Exchange and Exchange Online Protection and click Continue.
  6. Click Done to complete.

Activate your unique myCloudPBX Teams Domain

To activate, we will need to create a single 'Activation User', this user will be tempory and can be removed once setup is complete.

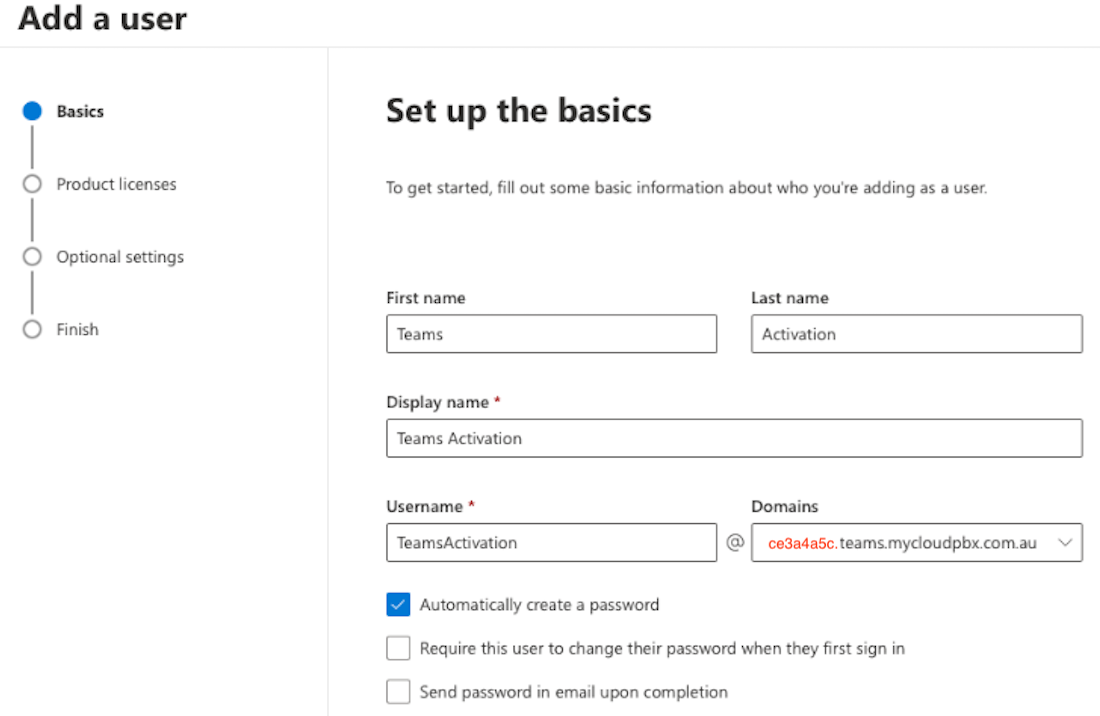

Step 1. From the Admin Center, select Users > Active User > Add a User

Step 2. Enter the following details

Setting Value
First Name Teams
Last Name Activation
Display Name Teams Activation
Username Teams Activation
Domain Add the domain name provided in prior steps. eg example.teams.mycloudpbx.com.au

Step 3. Check Automaically create a password.

Step 4. Uncheck Require this user to change their password.

Step 5. Uncheck Send password in email.

User Activation

Step 6. Assign the User a Microsoft 365 subscription with Microsoft Teams Phone

Configure Direct Routing

  1. Log in to Microsoft Teams Admin Center:

    1. Navigate to the Microsoft Teams Admin Center.
    2. Log in with your administrator credentials.
  2. Set Up PSTN Gateway:

    1. In the Teams Admin Center, go to Voice > Direct Routing.
    2. Click on Manage PSTN usage records User Activation
    3. Click Add and enter your unique Teams URL (eg example.teams.mycloudpbx.com.au) and Apply

    4. Connect to PowerShell and enter the following:

    Import-Module MicrosoftTeams

    Connect-MicrosoftTeams


    When prompted enter your Microsoft Teams Admin user details.

    New-CsOnlineVoiceRoute -Identity example.teams.mycloudpbx.com.au -NumberPattern ".*." -Priority 1 -OnlinePstnUsages example.teams.mycloudpbx.com.au -OnlinePstnGatewayList example.teams.mycloudpbx.com.au


Tip

Replace example.teams.mycloudpbx.com.au with your unique domain.

Voice Routing Policies

  1. In the Microsoft Teams Admin Center, navigate to Voice > Voice routing policies.
  2. Click on Add to create a new voice routing policy.
  3. Enter your unique Teams URL (eg example.teams.mycloudpbx.com.au)
  4. Under PSTN Usage Records, select the PSTN usage record that applies to your Direct Routing configuration.
  5. Add the newly created PSTN usage record to the policy.

Assign Voice Routing Policies:

  1. Go to Users > Manage users.
  2. Select the users you want to assign the voice routing policy to.
  3. Click on Edit and assign example.teams.mycloudpbx.com.au to the selected users.

Note

Teams activation can take up to 24 hours.

You can check the activation status by selecting Analytics & reports > Usage reports > PSTN and SMS (preview) usage

Teams User Mapping

Note

For myCloudPBX and Microsoft Teams to work together, the Teams user extension numbers must be mapped here .

This tells myCloudPBX to route calls to these users via the Microsoft Teams instance directly.

First, allocate each Teams User with an Extension Number (These should match the users created earlier on the myCloudPBX Connector Configuration screen.

  1. Log in to the Microsoft Teams Admin Center.
  2. Navigate to Users → Manage Users.
  3. For each user who should use Direct Routing:
  4. Assign a phone number matching the extension configured in myCloudPBX (e.g. 101)
  5. Ensure voice routing policies are applied.

Configure Dial Plans

Microsoft Teams uses E.164. We will create a series of normalisation rules to align with the standard telephone number format for end users.

  1. Go to Voice > Dials Plans
  2. Click Add
  3. Name the Dial Plan [STATE] myCLoudPBX. We reccommend creating a dial plan for each State/Territory your users are located in, this will allow for localised dialling for their location.

Australia

  • Click Add to create the first normalisation rule Dial Plan
  • Enter a Name and click Advanced, follow this process to create a new rule for each of the following
Name Rule Creation Mode If Condition Then Do This
AU-National Advanced ^0([2\|3\|7\|8]{1}[0-9]{8})$ +61$1
AU-Mobile Advanced ^0([4\|5]{1}[0-9]{8})$ +61$1
AU-13-1300 Advanced ^(13(\d{4}\|00\d{6}))$ +61$1
AU-1800 Advanced ^(1800\d{6})$ +61$1
AU-0011 Advanced ^0011(\d+)$ +61$1
AU-000 Advanced ^(000)$ $1

Create local dial plans for users in a specific state/territory and allocate as required

Name Rule Creation Mode If condition Then do this
AU-Local-02 Advanced ^([2-9]\d{7})$ +612$1
AU-Local-03 Advanced ^([2-9]\d{7})$ +613$1
AU-Local-07 Advanced ^([2-9]\d{7})$ +617$1
AU-Local-08 Advanced ^([2-9]\d{7})$ +618$1
  • Click Save
  • Assign the Policy to users by selecting Users > Manage Users and Select the User, click Policies
  • Select Voice Routing Policy > Edit
  • Choose example.teams.mycloudpbx.com.au from the Drop Down List

New Zealand

  • Click Add to create the first normalisation rule
  • Create a new rule for each of the following
Name Rule Creation Mode If condition Then do this
NZ-National Advanced ^0([2\|3\|4\|6\|7\|9]{1}[0-9]{7})$ +64$1
NZ-0800 Advanced ^(0800\d{6,7})$ +64$1
NZ-0508 Advanced ^(0508\d{6,7})$ +64$1
NZ-0900 Advanced ^(0900\d{6,7})$ +64$1
NZ-Mobile Advanced ^0(2\d{7,9})$ +64$1
  • Create local dial plan for users in a specific state/territory
Name Rule Creation Mode If condition Then do this
NZ-Local-02 Advanced ^([2-9]\d{6})$ +64$1
NZ-Local-03 Advanced ^([2-9]\d{6})$ +64$1
NZ-Local-04 Advanced ^([2-9]\d{6})$ +64$1
NZ-Local-06 Advanced ^([2-9]\d{6})$ +64$1
  • Click Save
  • Assign the Policy to users by selecting Users > Manage Users and Select the User, click Policies
  • Select Voice Routing Policy > Edit
  • Choose example.teams.mycloudpbx.com.au from the Drop Down List

Emergency Call Routing

Create an Emergency Call Routing Policy

  1. Go to Voice > Emergency policies in the left navigation menu.
  2. Select the 'Call routing policies' tab.
  3. Click Add to create a new policy.

Tip

You can create a Policy per country, or bundle them all into one.

Warning

If you use a single policy per country, or bundle them all into one policy, make sure that you have covered the emergency phone numbers for any Country that you are using on the PBX.

Proceed to add an Emergency Routing Policy for each Country you plan to support on the PBX.

Australia

  1. Enter AU 000 myCloudPBX for the name of the Call routing policy
  2. Enter 000 for the dial string
  3. Select example.teams.mycloudpbx.com.au from the drop down PSTN usage record
  4. Click Save

Apply Emergency Call Routing Policy to Users

  1. Select Users > Manage Users and Select the User, click Policies
  2. Select Emergency Call Routing > Edit
  3. Choose example.teams.mycloudpbx.com.au from the Drop Down List

Sample Emergency Number List

Note

This list is not exhaustive of all Countries, please ensure you check which Emergency numbers are relevant to you.

Country Emergency Phone Numbers
Australia 000
New Zealand 111
USA 911
United Kingdon 999

Example PowerShell Snippet

Set-CsPhoneNumberAssignment -Identity "ben@example.com" `
  -PhoneNumber +61370006700 `
  -PhoneNumberType DirectRouting
